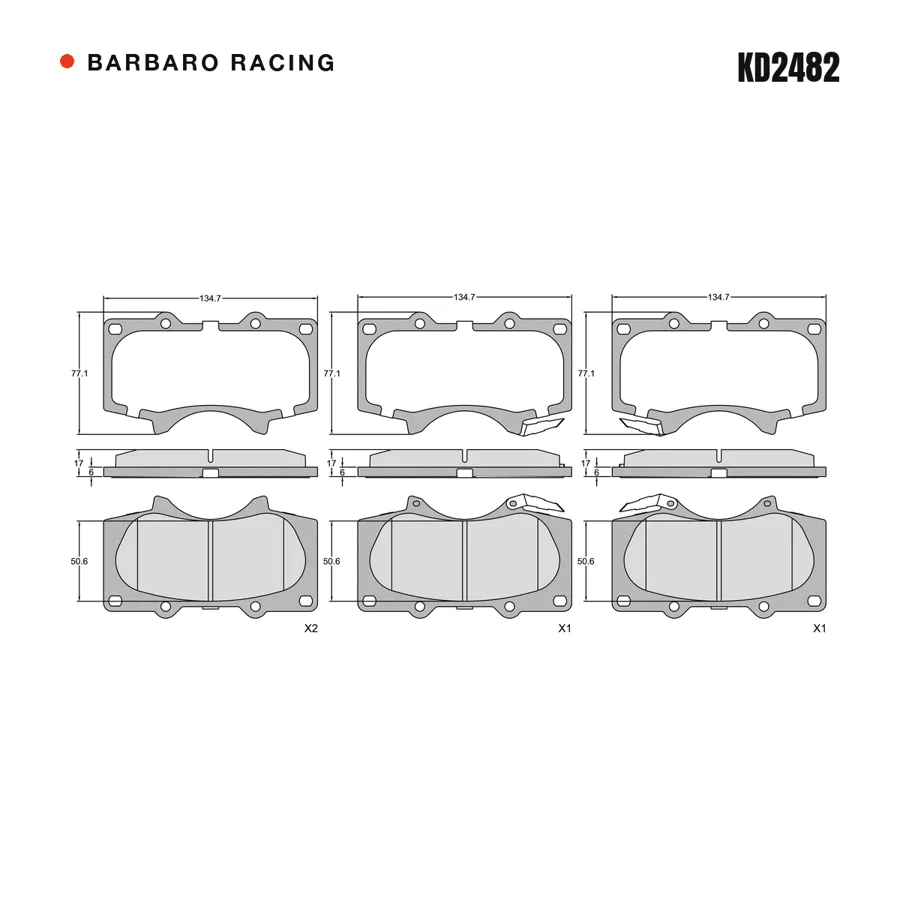

KD2482 brake pad shape drawing

Factory drawing

Length: 134.7mm
Height: 77.1mm
Thickness: 17mm
Friction height: 50.6mm

Front axle

KD2482

Fits Toyota Land Cruiser Prado / 4Runner, JAC T6, Lexus GX, Huanghai N1S, Mitsubishi Pajero

Compound

-800°C maximum temperature rating
-Street-legal track day capability
-Superior high-speed deceleration control

A$417.00Incl. GST

S-01 · SKU D24820N6

Fits these cars

Huanghai

Model	Chassis	Years	Engine / variant	Axle
N1S	-	2014-	2.4L, 2.4T, 2.5TDI diesel, 2.8TDI diesel	Front
N2	-	2014-	2.4L, 2.4T, 2.5TDI diesel, 2.8TDI diesel	Front
N2S	-	2015-	2.4L	Front
N3	-	2017-	2.4T, 2.5TDI diesel	Front
N7	-	2018-	2.4T, 2.5TDI diesel	Front

JAC

Model	Chassis	Years	Engine / variant

Mitsubishi

Model	Chassis	Years	Engine / variant	Axle
Montero	V80, V8V, V90	2006-	3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (4M41)	Front
Montero Classic	V2W	2006-	3.8 (6G75)	Front
Montero IV	V8W, V9W	2007-	3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75), 3.0 4WD, 3.0 (6G72(SOHC24V))	Front
Pajero	V97	2006-	3.8L	Front
Pajero / Shogun	V80, V8V, V90	2006-	3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (4M41)	Front
Pajero / Shogun Classic	V2W	2006-	3.8 (6G75)	Front
Pajero / Shogun IV	V8W, V9W	2007-	3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75), 3.0 4WD, 3.0 (6G72(SOHC24V))	Front
Pajero Classic	V2W	2006-	3.8 (6G75)	Front
Pajero Full IV	V8W, V9W	2007-	3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75), 3.0 4WD, 3.0 (6G72(SOHC24V))	Front
Pajero IV	NS, NT, NW, NX, V80, V8V, V8W, V90, V9W	2006-	3.2 DI-D, 3.2 DI-D 4WD, 3.2 TD 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75), 3.0 4WD, 3.0 (6G72(SOHC24V))	Front
Pajero V77China (GAC Mitsubishi)	-	2004-2011	3.8L	Front
Shogun IV	V8W, V9W	2007-	3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75), 3.0 4WD, 3.0 (6G72(SOHC24V))	Front

Toyota

Model	Chassis	Years	Engine / variant	Axle
4Runner	AN160, AN50, AN60, GRN21, KZN18, KZN21, N210, N280, RZN18, UZN21, VZN18	2002-	3.0TDI diesel, 2.7L, 4.0 VVTi, 4.7 4WD, 4.0 (1GR-FE), 4.7 (2UZ-FE), 4.0 4WD	Front
FJ Cruiser	GSJ1	2006-	4.0 i V6, 4.0 i V6 4WD, 4.0 VVTi, 4.0 VVTi 4WD, 4.0 (1GR-FE)	Front
Fortuner	GGN5, GGN6, KUN5, KUN6, LAN5, TGN5, TGN6	2004-2015	2.5 D-4D 4WD, 3.0 D, 3.0 D 4WD, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 4.0 VVTi 4WD, 4.0 (1GR-FE)	Front
Hilux	GGN, LAN, LN1, RZN1, TGN, VIGO III KUN	1995-	2.5 D-4D, 2.5 D-4D 4WD, 3.0 D, 3.0 D-4D 4WD, 3.0 D 4WD, 3.4 4WD, KUN26, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 2.7 (3RZ-FE), 3.4 (5VZ-FE), 2.4 TD 4WD, 2.7 4WD, 4.0 4WD, KUN16, 4.0 (1GR-FE), 2.4 diesel (2L-T), 2.7 (2TR-FE), 3.0 diesel (5L), 3.0 diesel (5L-E)	Front
Hilux II	LN5, LN6, LN8, RN5, RN6, YN5, YN6	2001-2005	3.4 4WD, 3.4 (5VZ-FE)	Front
Hilux III	GGN, KUN, LAN, TGN	2005-	2.5 D-4D, 2.5 D-4D 4WD, 3.0 D, 3.0 D-4D 4WD, 3.0 D 4WD, KUN26, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 2.7 4WD, 4.0 4WD, KUN16, 4.0 (1GR-FE), 2.7 (2TR-FE)	Front
Land Cruiser	GRJ12, KDJ12, KZJ12, LJ12, TRJ12	2002-2009	3.0 D, 3.0 D-4D, 4.0 V6 WTi, 4.5 D, GRJ12, GRJ125, KDJ120, KDJ125, KDJ150, KZJ12, RZJ12, TRJ12, 4.0 (1GR-FE), 3.0 diesel (1KD-FTV), 3.0 diesel (1KZ-TE), 4.5 diesel (1VD-FTV), 2.7 (2TR-FE), 2.7 (3RZ-FE), 3.0 diesel (5L-E), 3.4 (5VZ-FE), GRJ120	Front
Land Cruiser 150	GRJ15, KDJ15	2010-	2.8 D-4D, 3.0 D-4D, 3.0 TDi, 4.0 V6 Dual VVTi, 4.0 V6 VVT-i, 4.0 V6 VVTi, 2.8 diesel (1GD-FTV), 4.0 (1GR-FE), 3.0 diesel (1KD-FTV), 2.7 (2TR-FE)	Front
Land Cruiser Prado	GRJ12, GRJ15, J120, J150, KDJ12, KDJ15, KZJ12, LJ12, TRJ12	2002-	3.0TDI diesel, 2.8TDI diesel, 2.8 D-4D, 3.0 D, 3.0 D-4D, 3.0 TDi, 4.0 V6 Dual VVTi, 4.0 V6 VVT-i, 4.0 V6 VVTi, 4.0 V6 WTi, 4.5 D, GRJ12, GRJ125, KDJ120, KDJ125, KDJ150, KZJ12, RZJ12, TRJ12, 2.8 diesel (1GD-FTV), 4.0 (1GR-FE), 3.0 diesel (1KD-FTV), 3.0 diesel (1KZ-TE), 4.5 diesel (1VD-FTV), 2.7 (2TR-FE), 2.7 (3RZ-FE), 3.0 diesel (5L-E), 3.4 (5VZ-FE), GRJ120	Front
Land Cruiser PradoChina (FAW Toyota)	J120, J15, J150	2003-	3.5L, 4.0 (1GR-FE), 2.7 (2TR-FE)	Front
PradoChina (FAW Toyota)	-	2003-2010	4.0 (1GR-FE)	Front
SW4	GGN5, GGN6, KUN5, KUN6, LAN5, LN1, RZN1, TGN5, TGN6	1995-2015	2.5 D-4D 4WD, 3.0 D, 3.0 D 4WD, 3.4 4WD, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 2.7 (3RZ-FE), 3.4 (5VZ-FE), 2.4 TD 4WD, 4.0 VVTi 4WD, 4.0 (1GR-FE), 2.4 diesel (2L-T), 3.0 diesel (5L), 3.0 diesel (5L-E)	Front
Sequoia	KX30, XK40	2000-2007	4.7L	Front
Tacoma	2nd gen, 3rd gen, GRN2, TRN2	2004-	2.7L, 3.5L, 4.0 4WD, 4.0 (1GR-FE)	Front
Tacoma II	LN5, LN6, LN8, RN5, RN6, YN5, YN6	2001-2005	3.4 4WD, 3.4 (5VZ-FE)	Front
Tundra	1st gen, K3, K4	2000-2006	4.7L, 4.0 4WD, 4.0 (1GR-FE)	Front
