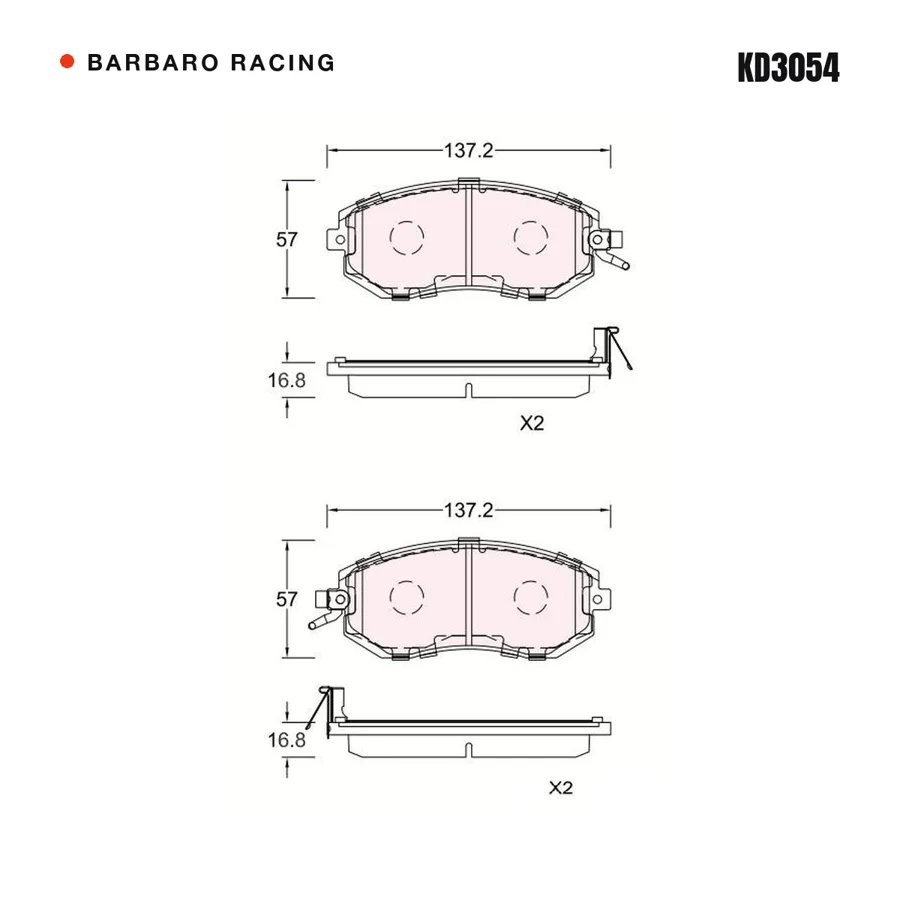

Factory drawing- Length
- 137.2mm
- Height
- 57mm
- Thickness
- 16.8mm
- Friction height
- 49.1mm
Front axle
KD3054
Fits Subaru BRZ / Forester / Impreza / Outback, Toyota 86 / GT86
Compound
- -Best-in-class noise performance (9/10)
- -Exceptional brake linearity (9/10)
- -Copper-free & asbestos-free formula
A$252.00Incl. GST
C-01 · SKU D30543UZ (also D30543N6)
Fits these cars
Subaru
| Model | Chassis | Years | Engine / variant | Axle |
|---|---|---|---|---|
| BRZ | ZC | 2012- | 2.0 (FA20) | Front |
| Forester | SH, SJ | 2007- | 2.5T, 2.0 AWD, 2.0 D AWD, 2.0 X AWD, 2.0 XT AWD, 2.5 AWD, 2.5 Turbo AWD, T, 2.0 diesel (EE20Z), 2.0 (EJ20), 2.0 (FB20), 2.5 (EJ255), 2.0 (FA20) | Front |
| Impreza | G3, GH, GJ, GP, GR | 2006- | 1.5 AWD, 1.5 F, 1.6 i, 1.6 i AWD, 2.0 AWD, 2.0 D AWD, 2.0 i AWD, 2.0 R AWD, 2.5 AWD, 2.0 diesel (EE20Z), 2.0 (EJ204), 2.5 (EJ255), 1.5 (EL15), 1.5 (EL154), 1.6 (FB16), 2.0 (FB20), 2.0 (FB20B) | Front |
| Impreza WRX | GJ | 2011- | 2.0T | Front |
| Impreza XV | GH | 2010-2012 | 2.0L | Front |
| Legacy V | BM, BR | 2009- |
