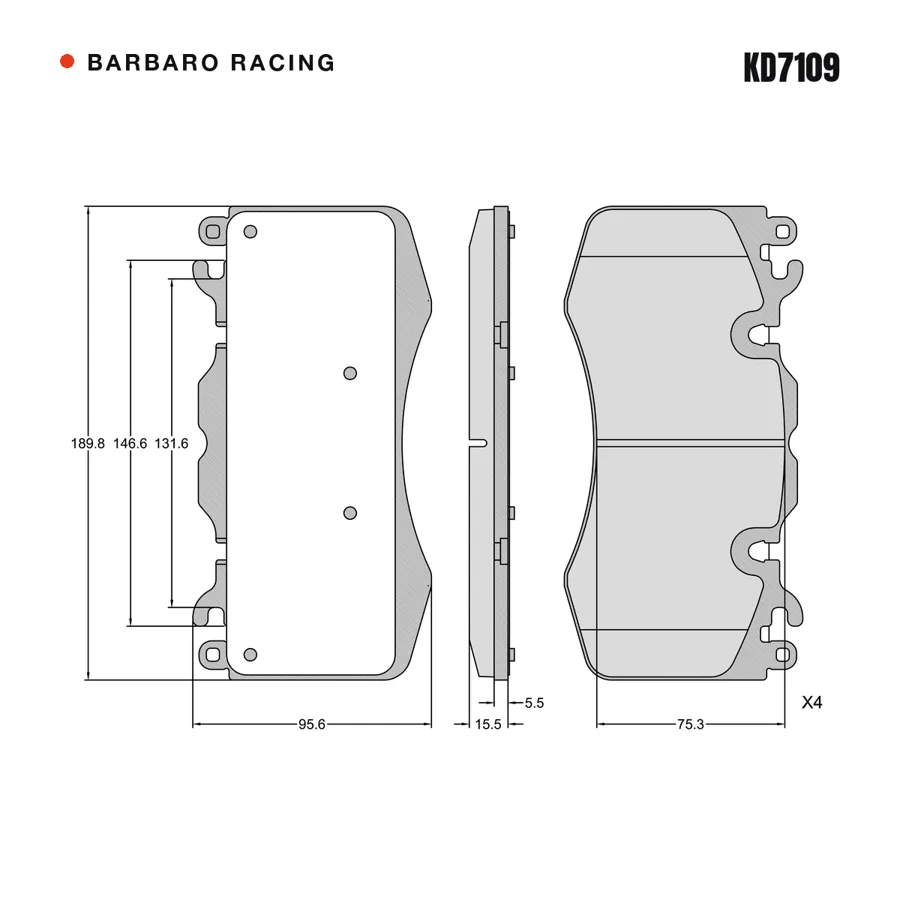

Factory drawing- Length
- 189.8mm
- Height
- 95.5mm
- Thickness
- 15.5mm
- Friction height
- 75.3mm
Front axle
KD7109
Fits Land Rover Range Rover / Discovery IV / LR4 IV
Compound
- -Ultra-low dust output (9/10)
- -Excellent noise performance (9/10)
- -Superior wear resistance (8/10)
A$264.00Incl. GST
C-02 · SKU D71097UZ
Fits these cars
Land Rover
| Model | Chassis | Years | Engine / variant | Axle |
|---|---|---|---|---|
| Discovery IV | LA | 2009- | 3.0 TD 4x4, 5.0 V8 4x4, 5.0 V8 HSE, 3.0 diesel (306DT), 3.0 diesel (30DDTX), 5.0 (508PN) | Front |
| LR4 IV | LA | 2009- | 3.0 TD 4x4, 5.0 V8 4x4, 5.0 V8 HSE, 3.0 diesel (306DT), 3.0 diesel (30DDTX), 5.0 (508PN) | Front |
| Range Rover | L322, LS, LW | 2002- | 3.0T, 5.0T, 3.0 D 4x4, 3.0 D Hybrid, 3.0 D Hybrid 4x4, 4.4 D 4x4, 5.0 4x4, 5.0 V8 SC HSE, 3.0 hybrid (306DT), 3.0 diesel (306DT), 4.4 diesel (448DT), 5.0 (508PS), 3.0 4x4, 5.0 V8 HN HSE, 3.0 diesel (30DDTX), 3.0 (30HD0D), 5.0 (508PN), 3rd generation, 5.0 V8 | Front |
| Range Rover 3 | L322 | 2009-2012 | 4.4TDI diesel, 5.0T | Front |
| Range Rover 4 | L405 | 2012- | 2.0T plug-in hybrid, 3.0TDI hybrid, 5.0L, 5.0T, 3.0T, 3.0TDI diesel | Front |
