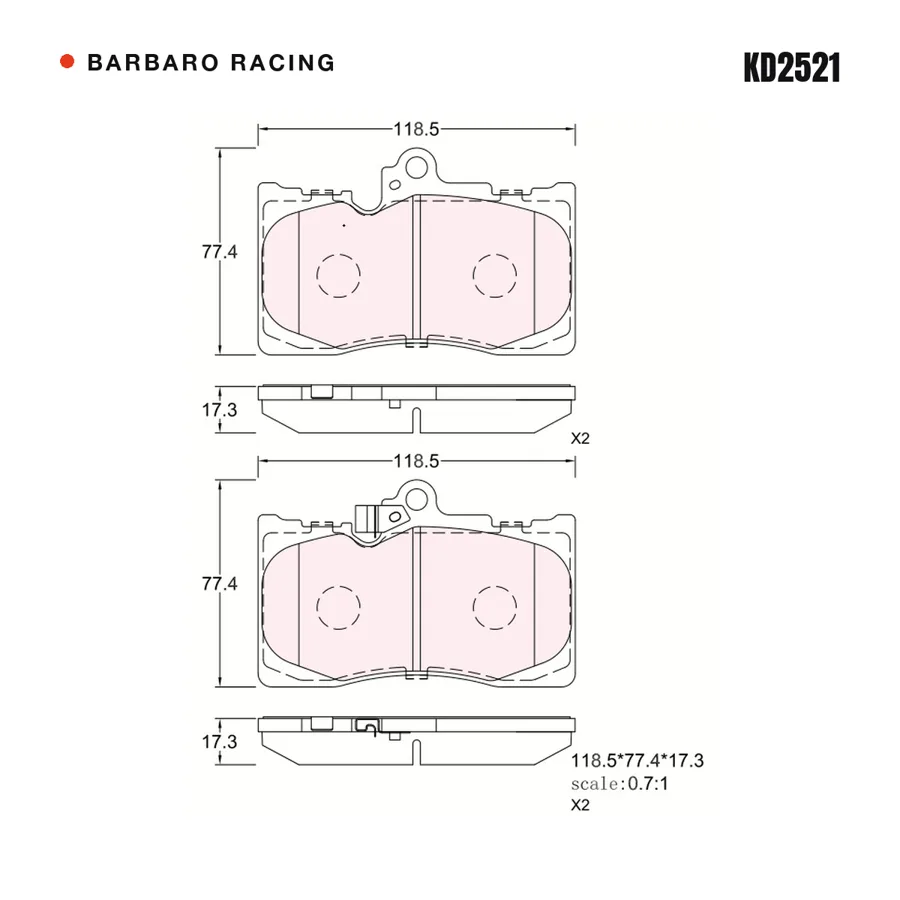

Factory drawing- Length
- 118.6mm
- Height
- 77.5mm
- Thickness
- 17.3mm
- Friction height
- 54mm
Front axle
KD2521
Fits Lexus IS / LS / GS, Toyota Mark X / Crown / Reiz II
Compound
- -Best-in-class noise performance (9/10)
- -Exceptional brake linearity (9/10)
- -Copper-free & asbestos-free formula
A$264.00Incl. GST
C-01 · SKU D25213UZ (also D25213N6)
Fits these cars
Lexus
| Model | Chassis | Years | Engine / variant | Axle |
|---|---|---|---|---|
| GS | GRL1, GRS19, GWL1, GWS19, L10, S190, URS19, UZS19 | 2004- | 2.0T, 3.5L hybrid, 200t, 250, 300, 300h, 350, 350 AWD, 430, 4.3 VVTi, 450h, 460, AWL10, GRL11, GRL10, GRL15, GWL10, GRS195, GRS190, GRS196, GRS191, GWS191, UZS190, 4.6 (1UR-FE), 4.6 (1UR-FSE), 2.5 hybrid (2AR-FSE), 3.5 hybrid (2GR-FSE), 3.5 (2GR-FSE), 3.5 hybrid (2GR-FXE), 3.0 (3GR-FE), 3.0 (3GR-FSE), 4.3 (3UZ-FE), 2.5 (4GR-FSE), 2.0 (8AR-FTS) | Front |
| IS | AVE3, GSE2, GSE3, XE30 | 2009- | 2.0T, 300, 350, 3.5 (2GR-FSE), 3.0 (3GR-FE) | Front |
| LS | - | - | - | Front |
| RC | AVC1, GSC1, USC1 | 2014- | 300h, 2.5 hybrid (2AR-FSE), 350, 3.5 (2GR-FSE) | Front |
Toyota
| Model | Chassis | Years |
|---|
