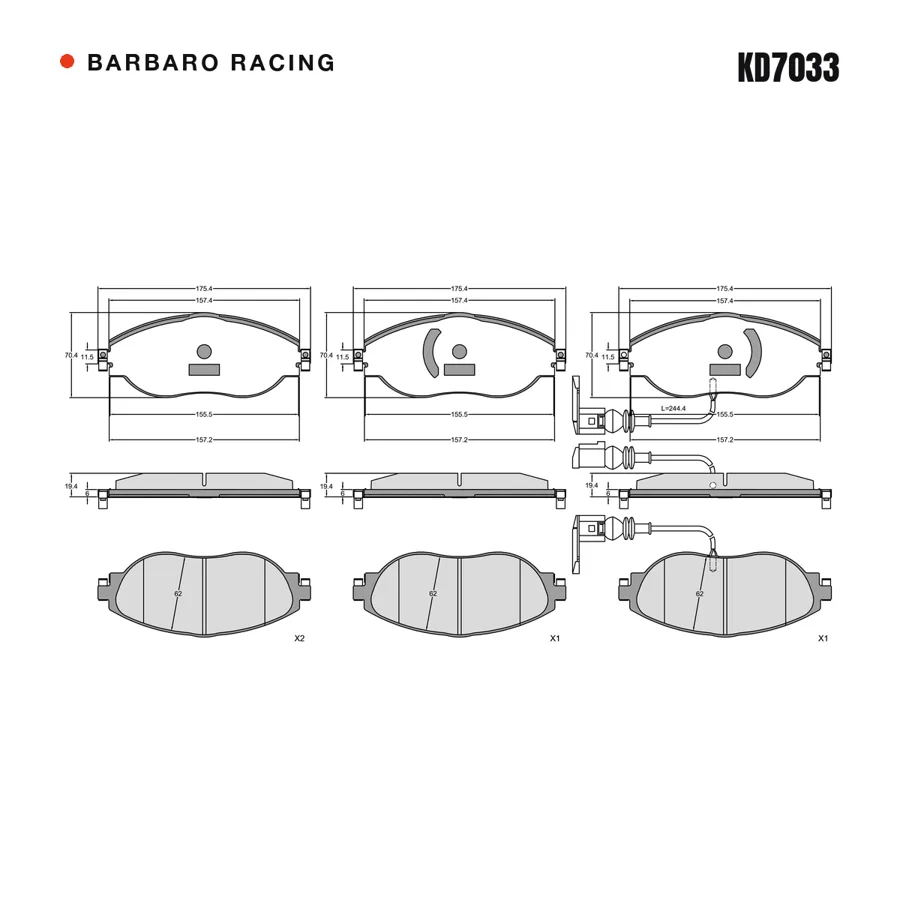

KD7033 brake pad shape drawing

Factory drawing

Length: 175.4mm
Height: 70.4mm
Thickness: 19.4mm
Friction height: 62.3mm

Front axle

KD7033

Fits Audi S3 / A3, Volkswagen Sharan / Tiguan 4MOTION, SEAT Alhambra, Skoda Octavia

Compound

-Best-in-class noise performance (9/10)
-Exceptional brake linearity (9/10)
-Copper-free & asbestos-free formula

A$328.00Incl. GST

C-01 · SKU D70333UZ (also D70333N6)

Fits these cars

Audi

Model	Chassis	Years	Engine / variant	Axle
A3	8V1, 8V7, 8VA, 8VS	2012-	S3, S3 quattro, 2.0 (CJXB), 2.0 (CJXC), 2.0 (CJXF), RS3 quattro, 2.5	Front
Q3China (FAW-VW Audi)	F3	2018-	2.0T(40 TFSI), 2.0T(45 TFSI)	Front
S3	8V	2014-	2.0T, Limousine (sedan)	Front

SEAT

Model	Chassis	Years	Engine / variant	Axle
Alhambra	71, 710, 711	2010-	1.8T, 2.0T, 1.4 TSI, 2.0 TDI, 2.0 TDI 4Drive, 2.0 TSI, 1.4 (CAVA), 1.4 (CNWB), 1.4 (CTHA), 1.4 (CZDA), 2.0 (CCZA), 2.0 (DEDA), 2.0 diesel (CFFA), 2.0 diesel (CFFB), 2.0 diesel (CFFE), 2.0 diesel (CFGB), 2.0 diesel (CFGC), 2.0 diesel (CUVC), 2.0 diesel (CUWA), 1.8 TSI, 1.8 (CDAA)

Skoda

Model	Chassis	Years	Engine / variant	Axle
KodiaqChina (SAIC-VW Skoda)	-	2016-	1.8T(TSI330), 2.0T(TSI330)	Front
Kodiaq 4×4China (SAIC-VW Skoda)	-	2016-	2.0T(TSI380)	Front
Kodiaq GTChina (SAIC-VW Skoda)	-	2018-	2.0T(330TSI)	Front
Kodiaq GT 4×4China (SAIC-VW Skoda)	-	2018-	2.0T(380TSI)	Front
Octavia	5E3, 5E5	2012-	1.2 TSI, 1.4 TSI, 1.6 TDI, 1.6 TDI 4x4, 1.8 TSI, 1.8 TSI 4x4, 2.0 TDI, 2.0 TDI 4x4, 2.0 TDI RS, 2.0 TSI RS, 2.0 (CHHA), 2.0 (CHHB), 1.4 (CHPA), 1.4 (CHPB), 1.4 (CZDA), 1.8 (CJSA), 1.8 (CJSB), 1.2 (CJZB), 1.2 (CYVB), 2.0 diesel (CKFB), 2.0 diesel (CKFC), 2.0 diesel (CRMB), 2.0 diesel (CRVC), 2.0 diesel (CUNA), 2.0 diesel (CUPA), 1.6 diesel (CLHA), 1.6 diesel (CLHB), 1.6 diesel (CRKB), 1.6 diesel (CXXB), 1.6 diesel (DBKA), 1.2 (CJZA), 1.6 (CWVA)	Front
Superb	3V3, 3V5	2015-	1.4 TSI, 1.4 TSI 4x4, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TDI 4x4, 2.0 TSI, 2.0 TSI 4x4, 2.0 (CHHB), 1.8 (CJSA), 1.8 (CJSC), 2.0 (CJXA), 2.0 diesel (CRLB), 2.0 diesel (DDAA), 2.0 diesel (DFCA), 2.0 diesel (DFEA), 1.4 (CZCA), 1.4 (CZDA), 1.4 (CZEA), 1.6 diesel (DCXA), 1.6 diesel (DCZA)	Front

Volkswagen

Model	Chassis	Years	Engine / variant	Axle
CC	357, 358	2008-	1.4 TSI, 1.4 TSI MultiFuel, 1.8 TSI, 2.0 BlueTDI, 2.0 TDI, 2.0 TDI 4motion, 2.0 TSI, 3.6 FSI, 3.6 FSI 4motion, 3.6 (BLV), 3.6 (BWS), 3.6 (CNNA), 1.8 (BZB), 1.8 (CDAA), 1.8 (CDAB), 1.8 (CGYA), 2.0 (CAWB), 2.0 (CBFA), 2.0 (CCTA), 2.0 (CCZA), 2.0 (CCZB), 2.0 diesel (CBAA), 2.0 diesel (CBAB), 2.0 diesel (CBBA), 2.0 diesel (CBBB), 2.0 diesel (CFFA), 2.0 diesel (CFFB), 2.0 diesel (CFGB), 2.0 diesel (CLLA), 2.0 diesel (CBAC), 2.0 diesel (CFGC), 2.0 diesel (CUVC), 2.0 diesel (CUWA), 1.4 (CKMA), 1.4 (CTHD), 1.4 (CZDA)	Front
Golf 7 R 4MOTION	5G	2013-	2.0T	Front
Golf Alltrack	BA5	2014-	1.6 TDI 4motion, 1.8 TSI 4motion, 2.0 TDI 4motion, 1.8 (CJSB), 2.0 diesel (CRBC), 2.0 diesel (CRLB), 2.0 diesel (CUNA), 1.6 diesel (CRKB), 1.6 diesel (CXXB)	Front
Golf VII	5G1, BA5, BE1	2012-	1.0 TSI, 1.2 TSI, 1.4 GTE Hybrid, 1.4 TGI CNG, 1.4 TSI, 1.6 TDI, 1.6 TDI 4motion, 2.0 GTD, 2.0 GTI, 2.0 R 4motion, 2.0 TDI, 2.0 TDI 4motion, 2.0 TSI R, 2.0 (CHHA), 2.0 (CHHB), 2.0 (CNTA), 2.0 (CXCA), 2.0 (CXDA), 1.4 (CHPA), 1.4 (CHPB), 1.4 (CMBA), 1.4 (CPTA), 1.4 (CPVA), 1.4 (CPVB), 1.4 (CXSA), 1.4 (CZCA), 1.4 (CZDA), 1.4 (CZEA), 1.0 (CHZD), 2.0 (CJXB), 2.0 (CJXC), 1.2 (CJZA), 1.2 (CJZB), 1.2 (CYVA), 1.2 (CYVB), 2.0 diesel (CKFC), 2.0 diesel (CRBC), 2.0 diesel (CRLB), 2.0 diesel (CRMB), 2.0 diesel (CRUA), 2.0 diesel (CRVA), 2.0 diesel (CYKB), 1.6 diesel (CLHA), 1.6 diesel (CLHB), 1.6 diesel (CRKA), 1.6 diesel (CRKB), 1.6 diesel (CXXB), 1.4 (CPWA), 1.4 (CUKB), 2.0 diesel (CUNA), 1.6 (CWVA), 2.0 diesel (CRBB), 2.0 diesel (CRVC)	Front
Jetta VII	BA5	2013-	2.0 GTD, 2.0 R 4motion, 2.0 (CJXB), 2.0 (CJXC), 2.0 diesel (CUNA), 1.6 (CWVA), 1.4 TGI CNG, 1.4 (CPWA)	Front
Passat	362, 365, 3G2, 3G5, A32	2010-	1.4 GTE Hybrid, 1.4 TSI, 1.4 TSI 4motion, 1.4 TSI EcoFuel, 1.4 TSI MultiFuel, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TDI 4motion, 2.0 TSI, 2.0 TSI 4motion, 3.6 FSI, 3.6 FSI 4motion, 3.6 (BWS), 1.4 (CAXA), 1.4 (CTHD), 1.6 diesel (CAYC), 2.0 (CCZB), 1.8 (CDAA), 1.8 (CDAB), 1.4 (CDGA), 3.6 (CDVB), 2.0 diesel (CFFA), 2.0 diesel (CFFB), 2.0 diesel (CFGB), 2.0 diesel (CFGC), 2.0 diesel (CLLA), 2.0 (CHHB), 2.0 (CXDA), 1.8 (CJSA), 1.8 (CJSC), 2.0 (CJXA), 1.4 (CKMA), 2.0 diesel (CRLB), 2.0 diesel (CUAA), 2.0 diesel (DDAA), 2.0 diesel (DFCA), 2.0 diesel (DFEA), 2.0 diesel (DFGA), 1.4 (CUKC), 1.4 (CZCA), 1.4 (CZDA), 1.4 (CZEA), 1.6 diesel (DCXA), 1.6 diesel (DCZA)	Front
Passat Alltrack	365, 3G5	2012-	1.8 TSI, 2.0 TDI, 2.0 TDI 4motion, 2.0 TSI 4motion, 2.0 (CCZB), 1.8 (CDAA), 1.8 (CDAB), 2.0 diesel (CFFB), 2.0 diesel (CFGB), 2.0 diesel (CFGC), 2.0 (CHHB), 2.0 diesel (CRLB), 2.0 diesel (CUAA), 2.0 diesel (DDAA), 2.0 diesel (DFCA), 2.0 diesel (DFEA)	Front
Passat CC	357	2008-2012	1.4 TSI MultiFuel, 1.8 TSI, 2.0 BlueTDI, 2.0 TDI, 2.0 TDI 4motion, 2.0 TSI, 3.6 FSI, 3.6 FSI 4motion, 3.6 (BLV), 3.6 (BWS), 3.6 (CNNA), 1.8 (BZB), 1.8 (CDAA), 1.8 (CDAB), 1.8 (CGYA), 2.0 (CAWB), 2.0 (CBFA), 2.0 (CCTA), 2.0 (CCZA), 2.0 (CCZB), 2.0 diesel (CBAA), 2.0 diesel (CBAB), 2.0 diesel (CBBA), 2.0 diesel (CBBB), 2.0 diesel (CFFA), 2.0 diesel (CFFB), 2.0 diesel (CFGB), 2.0 diesel (CLLA), 2.0 diesel (CBAC), 1.4 (CKMA)	Front
Sharan	7N, 7N1, 7N2	2010-	1.4T, 1.8T, 2.0T, 1.4 TSI, 1.8 TSI, 2.0 TDI, 2.0 TDI 4motion, 2.0 TSI, 1.4 (CAVA), 1.4 (CNWB), 1.4 (CTHA), 1.4 (CZDA), 2.0 (CCZA), 2.0 (DEDA), 1.8 (CDAA), 2.0 diesel (CFFA), 2.0 diesel (CFFB), 2.0 diesel (CFFE), 2.0 diesel (CFGB), 2.0 diesel (CFGC), 2.0 diesel (CUVA), 2.0 diesel (CUVC), 2.0 diesel (CUWA)	Front
TayronChina (FAW-VW)	0D1	2018-	2.0T(330TSI)	Front
Tayron 4MOTIONChina (FAW-VW)	0D1	2018-	2.0T(330TSI), 2.0T(380TSI)	Front
Tayron GTEChina (FAW-VW)	0D1	2019-	1.4T plug-in hybrid	Front
Tiguan 4MOTION	AD1	2016-	2.0T(330TSI), 2.0T(380TSI)	Front
Tiguan LChina (SAIC-VW)	-	2016-	1.8T(330TSI), 2.0T(330TSI)	Front
Tiguan L 4MOTIONChina (SAIC-VW)	-	2016-	2.0T(380TSI)	Front
Tiguan L PHEVChina (SAIC-VW)	-	2018-	1.4T(430PHEV) plug-in hybrid	Front
