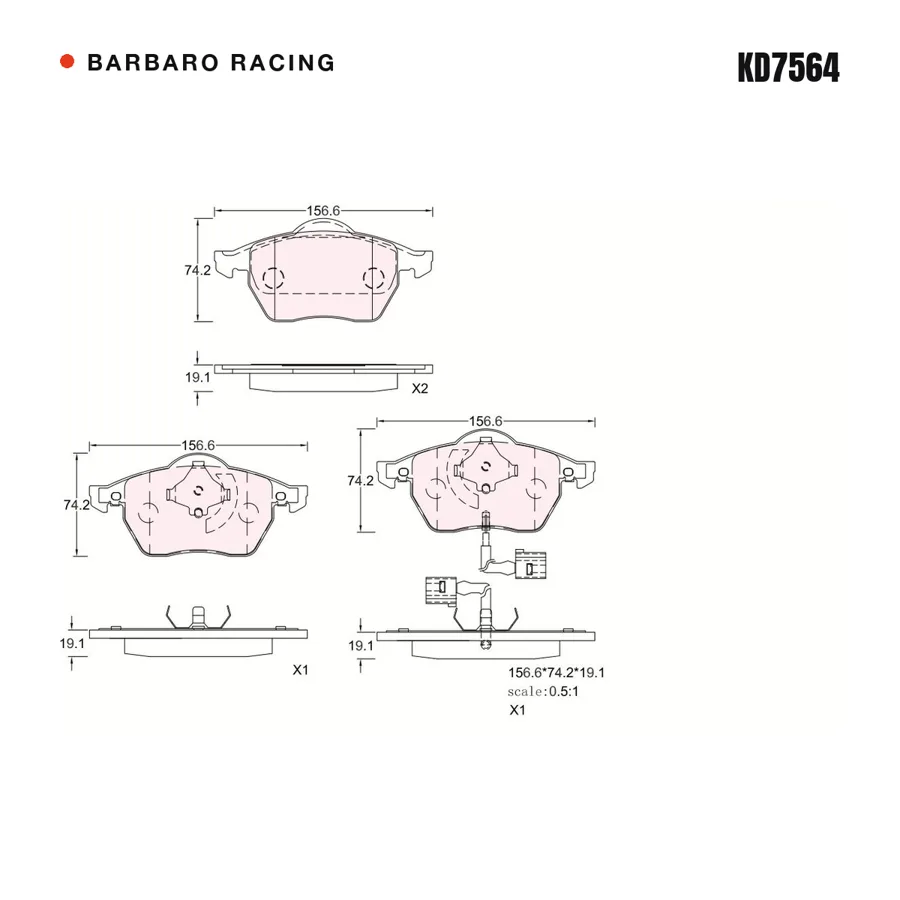

KD7564 brake pad shape drawing

Factory drawing

Length: 156.5mm
Height: 74mm
Thickness: 19.1mm
Friction height: 61mm

Front axle

KD7564

Fits Volkswagen Bora / Beetle, SEAT Leon / Toledo II, Audi A3, Skoda Octavia

Compound

-Best-in-class noise performance (9/10)
-Exceptional brake linearity (9/10)
-Copper-free & asbestos-free formula

A$328.00Incl. GST

C-01 · SKU D75643UZ

Fits these cars

Audi

Model	Chassis	Years	Engine / variant	Axle
A3	8L1	1996-2003	1.8 T, 1.8 T quattro, 1.9 TDI, 1.9 TDI quattro, S3, S3 quattro, 1.8 (AGU), 1.8 (AJQ), 1.8 (APP), 1.8 (AQA), 1.8 (ARY), 1.8 (ARZ), 1.8 (AUM), 1.8 (AUQ), 1.8 (ARX), 1.8 (AMK), 1.8 (APY), 1.8 (AUL), 1.8 (BAM), 1.9 diesel (ASZ)	Front
TT	8N3, 8N9	1998-2006	1.8 T, 1.8 T quattro, 1.8 (AJQ), 1.8 (APP), 1.8 (ATC), 1.8 (AUM), 1.8 (AUQ), 1.8 (BVP), 1.8 (BVR), 1.8 (APX), 1.8 (ARY), 1.8 (BAM), 1.8 (BFV)	Front

SEAT

Model	Chassis	Years	Engine / variant	Axle
Leon	1M1	1999-2006	1.4 16V, 1.6 16 V, 1.8 20V, 1.8 20V T, 1.8 20V T 4, 1.8 Turbo 4x4, 1.9 TDI, 2.3 VR5, 2.8 Cupra 4, 1.6 (AEH), 1.6 (AKL), 1.6 (APF), 1.6 (BFQ), 1.6 (BGU), 1.8 (AGN), 1.8 (APG), 1.4 (AHW), 1.4 (APE), 1.4 (AUA), 1.4 (AXP), 1.4 (BCA), 1.8 (AJQ), 1.8 (ARY), 1.8 (AMK), 1.8 (APP), 1.8 (AUQ), 2.3 (AQN), 1.9 diesel (ARL), 1.9 diesel (ASZ), 1.6 (ATN), 1.6 (AUS), 1.6 (AZD), 1.6 (BCB), 2.8 (AUE), 2.8 (BDE)

Skoda

Model	Chassis	Years	Engine / variant	Axle
Octavia	1U2, 1U5	1996-2010	1.8 T, 1.8 T 4x4, 1.9 SDI, 1.9 TDI, 1.9 TDI 4x4, 2.0 4x4, RS 1.8 T, 1.9 diesel (AGP), 1.9 diesel (AQM), 1.9 diesel (AGR), 1.9 diesel (AHF), 1.9 diesel (ALH), 1.9 diesel (ASV), 1.9 diesel (ATD), 1.8 (AGU), 1.8 (ARX), 1.8 (ARZ), 1.8 (AUM), 2.0 (ATF), 1.8 (AUQ)	Front

Volkswagen

Model	Chassis	Years	Engine / variant	Axle
Beetle	1C1, 1Y7, 9C1	1999-2010	1.8 T, 2.3 V5, RSI 3.2 4motion, 1C9, 1.8 (AGU), 1.8 (APH), 1.8 (AVC), 1.8 (AWP), 1.8 (AWU), 1.8 (AWV), 1.8 (BKF), 1.8 (BNU), 2.3 (AQN), 3.2 (AXJ), 2.5 (BPR), 2.5 (BPS)	Front
Bora	1J2, 1J6	1998-2015	1.4 16V, 1.8 T, 1.9 TDI, 1.9 TDI 4motion, 2.0 4motion, 2.3 V5, 2.3 V5 4motion, 2.8 V6 4motion, 1.8 (AGU), 1.8 (ARX), 1.8 (AUM), 1.8 (AUQ), 1.8 (BAE), 2.3 (AGZ), 2.3 (AQN), 1.9 diesel (AHF), 1.9 diesel (ARL), 1.9 diesel (ASV), 1.9 diesel (ASZ), 1.4 (AHW), 1.4 (AXP), 1.4 (BCA), 2.0 (APK), 2.0 (AQY), 2.0 (AZG), 2.0 (AZH), 2.0 (AZJ), 2.0 (BBW), 2.8 (AQP), 2.8 (AUE), 2.8 (BDE)	Front
BoraChina (FAW-VW)	1J2	2001-2006	1.8 Turbo, 1.8 (BAE)	Front
C-TrekChina (FAW-VW)	153	2016-	1.4T(230TSI)	Front
Golf IV	1J1, 1J5	1997-2006	1.6 16V, 1.6 FSI, 1.8 T, 1.8 T GTI, 1.9 TDI, 1.9 TDI 4motion, 2.0 4motion, 2.3 V5, 2.3 V5 4motion, 2.8 V6 4motion, 1.9 diesel (AGR), 1.9 diesel (AHF), 1.9 diesel (AJM), 1.9 diesel (ALH), 1.9 diesel (ARL), 1.9 diesel (ASV), 1.9 diesel (ASZ), 1.9 diesel (ATD), 1.9 diesel (AUY), 1.9 diesel (AXR), 1.8 (AGU), 1.8 (AQA), 1.8 (ARZ), 1.8 (AUM), 1.8 (AWD), 2.3 (AGZ), 2.3 (AQN), 2.0 (APK), 2.0 (AQY), 2.0 (AZG), 2.0 (AZJ), 2.0 (BER), 2.8 (AQP), 2.8 (AUE), 2.8 (BDE), 1.6 (ATN), 1.6 (AUS), 1.6 (AZD), 1.6 (BCB), 1.8 (AUQ), 2.0 (AZH), 1.6 (BAD)	Front
Golf V	1K1	2003-2008	1.4 FSI, 1.8 GTI, 1.8 Turbo, 2.0 FSI 4motion, 1.8, 1.4 (BKG), 1.4 (BLN), 2.0 (BLX), 2.0 (BVX)	Front
Jetta IV	1J2, 1J5, 1J6	1998-2006	1.4 16V, 1.6 16V, 1.6 FSI, 1.8 T, 1.9 TDI, 1.9 TDI 4motion, 2.0 4motion, 2.3 V5, 2.3 V5 4motion, 2.8 V6 4motion, 1.9 diesel (AGR), 1.9 diesel (AHF), 1.9 diesel (AJM), 1.9 diesel (ALH), 1.9 diesel (ARL), 1.9 diesel (ASV), 1.9 diesel (ASZ), 1.9 diesel (ATD), 1.9 diesel (AUY), 1.9 diesel (AXR), 1.8 (AGU), 1.8 (AQA), 1.8 (ARZ), 1.8 (AUM), 1.8 (AWD), 1.8 (ARX), 1.8 (AUQ), 1.8 (BAE), 2.3 (AGZ), 2.3 (AQN), 1.4 (AHW), 1.4 (AXP), 1.4 (BCA), 2.0 (APK), 2.0 (AQY), 2.0 (AZG), 2.0 (AZH), 2.0 (AZJ), 2.0 (BBW), 2.8 (AQP), 2.8 (AUE), 2.8 (BDE), 1.6 (ATN), 1.6 (AUS), 1.6 (AZD), 1.6 (BCB), 1.6 (BAD)	Front
LavidaChina (SAIC-VW)	-	2012-	1.4 TSI, 1.4 (CFB)	Front
NEW Beetle	1C1, 1Y7, 9C1	1999-2010	1.8 T, 2.3 V5, RSI 3.2 4motion, 1C9, 1.8 (AGU), 1.8 (APH), 1.8 (AVC), 1.8 (AWP), 1.8 (AWU), 1.8 (AWV), 1.8 (BKF), 1.8 (BNU), 2.3 (AQN), 3.2 (AXJ), 2.5 (BPR), 2.5 (BPS)	Front
Novo Fusca	1C1, 9C1	1999-2010	1.8 T, 2.3 V5, RSI 3.2 4motion, 1C9, 1.8 (AGU), 1.8 (APH), 1.8 (AVC), 1.8 (AWP), 1.8 (AWU), 1.8 (AWV), 1.8 (BKF), 1.8 (BNU), 2.3 (AQN), 3.2 (AXJ), 2.5 (BPR), 2.5 (BPS)	Front
Polo	9N	2005-2009	1.8 GTI, 1.8 GTi Cup Edition, 1.8 (BBU), 1.8 (BJX)	Front
Rabbit V	1K1	2003-2008	1.4 FSI, 1.8 GTI, 1.8 Turbo, 2.0 FSI 4motion, 1.8, 1.4 (BKG), 1.4 (BLN), 2.0 (BLX), 2.0 (BVX)	Front
